Hydrotechnik Multi-Handy 3050
The top product of hydrotechnik Multi-Handy range offers all the functions and features that measurement technicians demand from mobile measuring systems. With the fourth input channel, the efficient operation-software, the large data storage and its USB interface, the hydrotechnik Multi-Handy 3050 opens-up even more extensive possibilities within professional measurement technology.
Hydrotechnik muti-handy3050 screen or online through the PC software can display all kinds of curves. It can print the report. It is the kind of complete the commissioning, acquisition equipment.
The MultiHandy 3050 is a suitable, user-friendly hand-held measuring instrument supporting the user in his daily measuring jobs.
When using hydrotechnik ISDS sensors the MultiHandy3050 detects the connected sensors automatically during initialization and takes over all parameters: measuring range,physical measured variable, units, signal output and characteristic curve (linearization). A confusion of the sensor is avoided and the entry of specific special characteristic data is no longer necessary.
Of course you can also connect sensors without hydrotechnik ISDS designation to your MultiHandy. Then you enter the sensor parameters in the operation menus.
All measurements can be transferred via an USB connection to a PC. The hydrotechnik software "HydroComSys" delivered free of charge offers comprehensive support with functions for evaluation, presentation and printing of the measured values.
Hydrotechnik Multi-Handy3050 Technical data
| Housing |
ABS plastic |
| Weight (incl. batteries) |
0.8 kg |
| Dimensions (H x W x D) |
203 x 107 x 76 mm |
| Hydrotechnik Multi-Handy3050 Display |
3,2" LCD with background illumination |
| Measurement display |
4-digit, 2 or 4 lines |
| Menu display |
8 lines |
| Interfaces |
USB ,RS232 and parallel as printer connector |
| Protective installations |
reverse polarity protection, overvoltage protection, self-reversive fuse resistors (PTC) |
| Hydrotechnik Multi-Handy3050 Battery |
230 VAC / 24 VDC, 340 mA |
| Connector |
power pack socket 6.3 mm |
| Ambient temperature |
0° ... 50° C |
| Relative humidity |
0 ... 80 %, not condensing |
| Storage temperature |
-20° ... 70° C |
| Measured variables |
e.g. pressure, temperature, volumetric flow, rotational speed, current, voltage,power, rotation moment, speed |
| Measuring value memory |
0.9 MB, max. 450,000 measuring val. frequency max. 150,000 meas. val. |
| Program memory |
512 kB Flash memory |
| Hydrotechnik Multi-Handy3050 Trigger |
programmable: channel 1, 2, 3, 4,none or key |
| Scanning rate |
1 ms ... 10 min. (programmable) |
| Measuring rate analog inputs |
1mS |
| Measuring rate frequency input |
period measurement from 0.5 Hz to
56 Hz; measurement time from 56 Hz
= 17.7 ms |
| Series of measurement |
Series of measurement max. 14 |
| Peak value buffering |
min./max.-values of all analog channels in background 1 ms |
| Error limit analog |
± 0.2 % of end value |
| Error limit digital |
± 0.2 % of measured value |
| Internal power supply |
battery max. 17.5 V / 2 Ah |
Hydrotechnik Multi-Handy3050 Order number
| Multi-Handy3050 |
Description |
Hydrotechnik Multi-Handy3050 Order number |
 |
3x analogue/1x frequency |
3160-00-63.00Multi-Handy3050 |

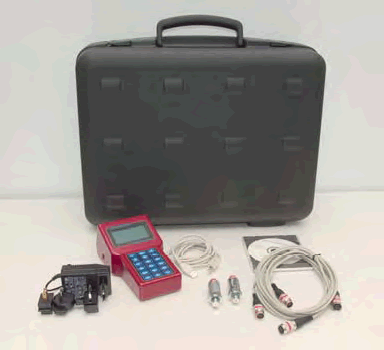

Hydrotechnik Measuring set 3050 p/p Order number
 |
| Measuring case containing: |
| Measuring instrument Multi-Handy 3050 |
1 |
| Power pack 24 VDC with adaptor |
1 |
| USB data transmission cable |
1 |
| MINIMESS® direct connection 1620 |
2 |
| Software HYDROcomsys |
1 |
| Pressure sensors HT-PD with free selectable measuring ranges |
2 |
| Transport case |
1 |
| Measuring cables 5,0 m |
2 |
|
| 2 pressure sensors with free selectable measuring ranges |
| Order number |
measuring ranges |
| 3050p/p- xx - xx |
-0.10.6Mpa=32 |
| 06 Mpa=21 |
| 020 Mpa=10 |
| 040 Mpa=15 |
| 060 Mpa=18 |
|
Hydrotechnik Measuring set 3050 p/p/T/Q Order number
| hydrotechnik Measuring set 3050 p/p/T/Q |
 |
| Measuring case containing: |
| Measuring instrument Multi-Handy 3050 |
1 |
| Power pack 24 VDC with adaptor |
1 |
| USB data transmission cable |
1 |
| MINIMESS® direct connection 1620 |
2 |
| Software HYDROcomsys |
1 |
| Temperature sensor -50 °C to +200 °C |
1 |
Pressure sensors HT-PD with free
selectable measuring ranges |
2 |
| Measuring turbine with free selectable measuring range |
1 |
| Transport case |
1 |
| Measuring cables 5,0 m |
4 |
|
| hydrotechnik Measuring set 3050 p/p/T/Q Order number |
| Order number |
2 pressure sensors with free selectable
measuring ranges |
1 meas. turbine with free selectable meas. range |
| 3050p/p/T/Q- xx - xx - xx |
-0.10.6Mpa=32 |
|
| 06 Mpa=21 |
01=110 |
| 020 Mpa=10 |
70=275 |
| 040 Mpa=15 |
71=9300 |
| 060 Mpa=18 |
72=16600 |
|
