◆Hydrotechnik Multi-Handy 2020:
This integrated system of hydrotechnik measurement instrument, sensors and accessories allows plug-and-play without any problems: connect – switch on – measure. Stored measuring data can be transferred to a PC via USB, and the evaluation is done by an adapted version of the software HYDROcomsys.
◆Important Safety Information:
Please take note of the Safety Advice and Warning Hints contained on the information sheet (TKZ L8898-00-00.01) that is part of these instructions and delivered with the device.
◆Range of validity:
The manual on hand is valid for hydrotechnik measuring instruments named"MultiHandy 2020“. It adresses to the operator of this instrument, that means the person, who works with the instrument.
The manual is not a technical manual. For any queries beyond the scope of this manual please feel free to contact our service department.
◆Hydrotechnik Multi-System 5060 can display for pressure, flow, temperature, speed figures, time curve, XY curve and the curve of real-time or offline data .

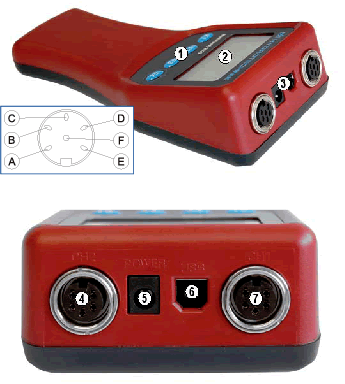

Hydrotechnik description of Multi-Handy2020
 |
|
||||||||||||||||||||||||||||||
Hydrotechnik's Multi-Handy2020 Technical data
Hydrotechnik's Multi-Handy2020 Technical data |
|
| Signal input | 2 channels;0–20 mA switchable per ISDS to 4–20 mA;Ri = 105 W,Ci = 10 nF |
| A/D Resolution | 12bit |
| Measuring accuracy | ±0.2%FS |
| Measuring memory (1channel storage with ISDS only) | 128 kB max. 60,000 measuring data; 1 channel: 60 sec. storage; 2 channels: 30 sec. storage |
| Hydrotechnik's Multi-Handy2020 display | 30 x 58 mm LCD with backlight |
| Data transmission interface | USB(RS 232, 57,600 Baud) |
| Batteries | 2x 1.2 V 2500 mAh NiMH cells |
| Ambient temperature and Storage temperature | 0 ... 60 °C / -20 ... +70 °C |
| Relative humidity | 0 to 80 %, not condensing |
| Dimensions (H x W x D) | 185 x 90 x 46 mm |
| Weight (with batteries) | 0.3 kg |
| Hydrotechnik's Multi-Handy2020 casing | ABS plastic |
| Noise emission | acc. to EN 61326 |
| Noise immunity | acc. to EN 61326 |
| Protective installation of sensor inputs | Reverse polarity protection, over voltage protection,self-resetting fuse protection |
| Hydrotechnik's Multi-Handy2020 scan rate | 1mS |
| Series of measurement | 1 |
| Peak value measurement rate | 1mS |
| Peak value update | 100mS |
| ISDS sensors | any |
| Volume fl ow sensors | only via f/I-converter with inductive sensor (ISDS only) |
| Not-ISDS sensors (pressure only) |
6 / 60 / 100 / 200 / 400 / 600 bar(0-20mA) |
Hydrotechnik's Multi-Handy2020 part-number
Hydrotechnik's Multi-Handy2020 Order number |
||
 |
Hydrotechnik's Multi-Handy2020 Pressure ranges | Order number |
| 2x -1 to 6 bar (-0.1 o 0,6 MPa) | 3160-32-32-69.00 | |
| 2x 0 to 60 bar (0 to 6 MPa) | 3160-21-21-69.00 | |
| 2x 0 to 200 bar (0 to 20 MPa) | 3160-10-10-69.00 | |
| 2x 0 to 400 bar (0 to 40 MPa) | 3160-15-15-69.00 | |
| 2x 0 to 600 bar (0 to 60 MPa) | 3160-18-18-69.00 | |
| 1x -1 to 6 bar (-0.1 to 0,6 MPa) 1x 0 to 60 bar (0 to 6 MPa) |
3160-32-21-69.00 | |
| 1x 0 to 60 bar (0 to 6 MPa) 1x 0 to 200 bar (0 to 20 MPa) |
3160-21-10-69.00 | |
| 1x 0 to 200 bar (0 to 20 MPa) 1x 0 to 400 bar (0 to 40 MPa) |
3160-10-15-69.00 | |
| 1x 0 to 400 bar (0 to 40 MPa) 1x 0 to 600 bar (0 to 60 MPa) |
3160-15-18-69.00 | |

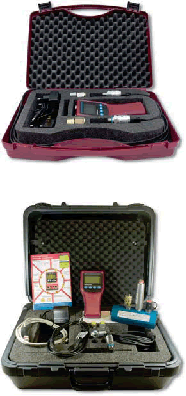

| Measuring set 2020 p/p: | ||
for pressure sensors |
3160-XX-XX-69.00 | |
