HT-PD PR130 Pressure sensor
Product range pressure sensors type HT-PD PR130
The latest thinfilm WSG pressure sensor type HT-PD PR130 from Hydrotechnik was developed in order to measure pressures and pressure peaks within an extended temperature band. Its strongest attributes lie in the following areas:
• Reliability
• Repeatability
• Temperature stability
• Robust industrial design
• Media compatibility
• Resistance to thermal shocks and vibrations
|
Hydrotechnik Technical data of HT-PD PR130 Pressure sensor
HT-PD PR130 Technical data |
| Overload range |
1.5 x nominal pressure |
| Burst pressure |
3 x nominal pressure |
| Signal type |
Two wire analog (4 ... 20 mA), three wire analog (0 ... 10 VDC) |
| Supply voltage Ub |
| ... at 4 ... 20 mA |
10...30VDC |
| ... at 0 ... 10 VDC |
12...32VDC |
| Current consumption |
6.5mA |
| Overvoltage protection |
32VDC |
| Error limit (of fi nal value) |
comprises the infl uences non-linearity, hysterese, repeatability, zero-point- and span error |
| ... at +22 °C (room temperature) |
±0.5% |
| ... at -15 ... +85°C |
±1% |
| ... at +85 ... +100°C |
±2.5% |
| ... at -40 ... -15°C |
±2.5% |
| Compensation temperature range |
-40...+100 |
| Non-linearity |
< ± 0.4 % of final value |
| Reproducability |
< ± 0.1 % of final value |
| Hysterese |
< ± 0.1 % of final value |
| Long-term stability |
< ± 0.1 % of final value/year |
| Response time |
< = 1 ms (10 ... 90 %) |
| Frequency range |
< = 1 kHz |
| Isolation resistance |
min. 100 MOhm |
| Total resistance |
RG = (Ub -10 V) / 20 mA (at output signal 4 ... 20 mA) |
| Load resistance |
RL = > 5 kOhm (at output signal 0 ... 10 VDC) |
| Number of load cycles |
> 1 x 107 |
| Medium temperature |
-40...+125 |
| Environmental temperature |
-40 ... +105 °C (short term +125 °C) |
| Storage temperature |
-40...+125 |
| EMV test |
EN 50081-2, EN 50082-2 |
| Vibrational stability |
5 mm 10 ... 32 Hz, 20 g 32 ... 500 Hz, DIN EN 60068-2-6 |
| Shock stability |
50 g (11 ms half-sine) |
| Electrical measuring connector |
4 pole device connector, M12 x 1 |
| Mechanical connection thread |
ISO228-G1/4A |
| Sealing material |
profi le seal ring acc. to DIN 3869, FKM |
| Protection type (EN 60529 / IEC 529) |
IP 67 (when connector is screwed) |
| Casing material |
non-corrosive high-grade steel |
| Membrane material |
non-corrosive high-grade steel |
| Tightening torque |
40 Nm (± 5 Nm) |
| Weight |
~ 85 g |

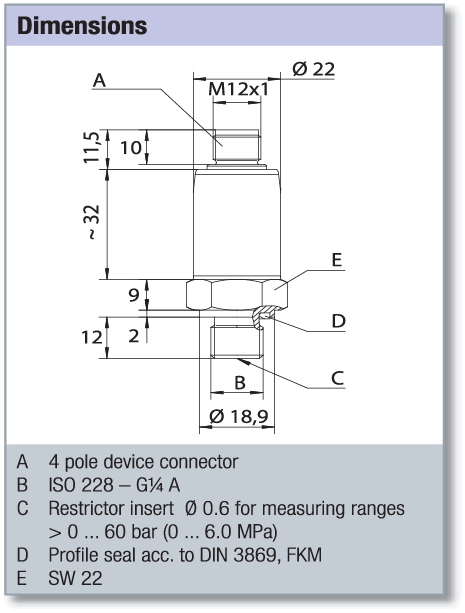

Hydrotechnik HT-PD PR130 Dimensions
Hydrotechnik HT-PD PR130 Electrical connector
| Pin assignment |
4 ... 20 mA (two wires) |
0 ... 10 V (three wires) |
 |
1 + Ub / signal + |
1 + Ub |
| 2 free |
2 free |
| 3 – Ub / signal – |
3 – Ub / signal – / GND |
| 4 free |
4 Signal + |
Hydrotechnik pressure sensors HT-PD PR130 4...20mA output
| Measuring range(MPa) |
Measuring range(Bar) |
4...20mA |
| -0.1...0MPa |
-1...0bar |
3403-30-I5.37 |
| -0.1...0.6MPa |
-1...6bar |
3403-32-I5.37 |
| -0.1...1MPa |
-1...10bar |
3403-54-I5.37 |
| 0...0.6MPa |
0...6bar |
3403-28-I5.37 |
| 0...1.0MPa |
0...10bar |
3403-26-I5.37 |
| 0...1.6MPa |
0...16bar |
3403-41-I5.37 |
| 0...4.0MPa |
0...40bar |
3403-31-I5.37 |
| 0...6MPa |
0...60bar |
3403-21-I5.37 |
| 0...10.0MPa |
0...100bar |
3403-16-I5.37 |
| 0...20.0MPa |
0...200bar |
3403-10-I5.37 |
| 0...25.0MPa |
0...250bar |
3403-17-I5.37 |
| 0...40.0MPa |
0...400bar |
3403-15-I5.37 |
| 0...60.0MPa |
0...600bar |
3403-18-I5.37 |
| 0...100.0MPa |
0...1000bar |
3403-29-I5.37 |
Hydrotechnik pressure sensors HT-PD PR130 0...10VDC output
| Measuring range(MPa) |
Measuring range(Bar) |
0...10VDC |
| -0.01...0MPa |
-0.1...0bar |
3403-60-I5.39 |
| -0.1...0.2MPa |
-1...2bar |
3403-68-I5.39 |
| -0.1...0.6MPa |
-1...6bar |
3403-32-I5.39 |
| 0...0.02MPa |
0...0.2bar |
3403-61-I5.39 |
| 0...0.2MPa |
0...2bar |
3403-25-I5.39 |
| 0...0.6MPa |
0...6bar |
3403-28-I5.39 |
| 0...1.0MPa |
0...10bar |
3403-26-I5.39 |
| 0...2.0MPa |
0...20bar |
3403-27-I5.39 |
| 0...2.5MPa |
0...25bar |
3403-40-I5.39 |
| 0...4.0MPa |
0...40bar |
3403-31-I5.39 |
| 0...6.0MPa |
0...60bar |
3403-21-I5.39 |
| 0...10.0MPa |
0...100bar |
3403-16-I5.39 |
| 0...20.0MPa |
0...200bar |
3403-10-I5.39 |
| 0...25.0MPa |
0...250bar |
3403-17-I5.39 |
| 0...40.0MPa |
0...400bar |
3403-15-I5.39 |
| 0...60.0MPa |
0...600bar |
3403-18-I5.39 |
| 0...100.0MPa |
0...1000bar |
3403-29-I5.39 |
