Hydrotechnik turbine flow meters type RE4 Introduction
 |
Turbine flow meters type RE4 |
| hydrotechnik in china | |
| Hydrotechnik RE4 data download | |
 |
|

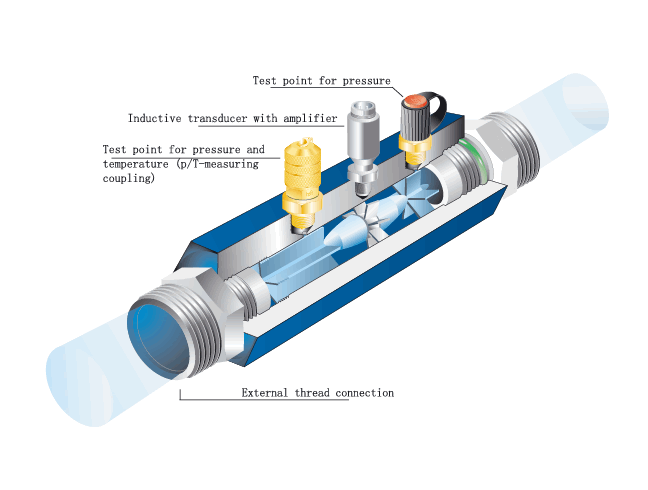

| The hydrotechnik RE4 flow measuring turbine is a flow rate meter. The turbine blade wheel is axially driven by the flow stream, rotating in proportion to the mean flow velocity. A non-contacting inductive pick-up generates a pulse each time its' electromagnetic field is interrupted by the rotating blades of the turbine. These pulses are then directly conver-ted into a flow measurement by the associated electronic instrumentation, in for example l/min. An advantage of the RE flow meas-uring turbine are the integrated test points which enable additional measurements of pressure and temperature. |
|
| Hydrotechnik RE4 advantages at a glance | |
| • Ideally suited for use with mineral oil and HFA-/HFC-liquids,skydrol, water etc. • Integrated test points for acquiring pressure and temperature measurements • Small physical dimensions, high pressure capability • Installation in any position, reverse flow operation • Low operational noise, high level of reproducibility • Improved accuracy through linearization feature with the corresponding evaluative instrumentation from within our product range • Measuring range expandable through linearization feature |
|
Hydrotechnik turbine flow meters type RE4 Technical parameters
| Measuring principle | volume fl ow |
| Viscosity range | 1-270mm²/s (cSt) |
| Medium temperature | max. +120 °C |
| Environmental temperature | -20 ... +85 °C |
| Storage temperature | -20 ... +85 °C |
| Output signal | frequency (rectangle) / 4 ... 20 mA |
| Supply voltage Ub | 12 ... 24 VDC |
| Electrical measuring connector | 5 pole device connector, M16 x 0.75 |
| Protection type (EN 60529 / IEC 529) | IP 40 |
| Tightening torque | 10 Nm (± 2 Nm) |
| Calibration viscosity | 30 mm²/s (cSt) |
| Material turbine casing | Aluminium AlZnMgCu 1,5 |
| Material turbine wheel | 1.4122 (for measuring range 1.0 ... 10 l/min) 1.0718 (for all other measuring ranges) |
| Material sealings | FKM |
| Material sensor casing | 1.4301 |
| Suitable measuring cable | MK 01 |

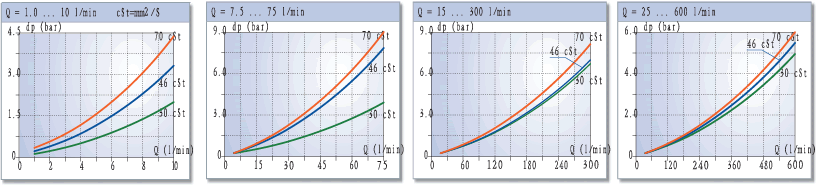

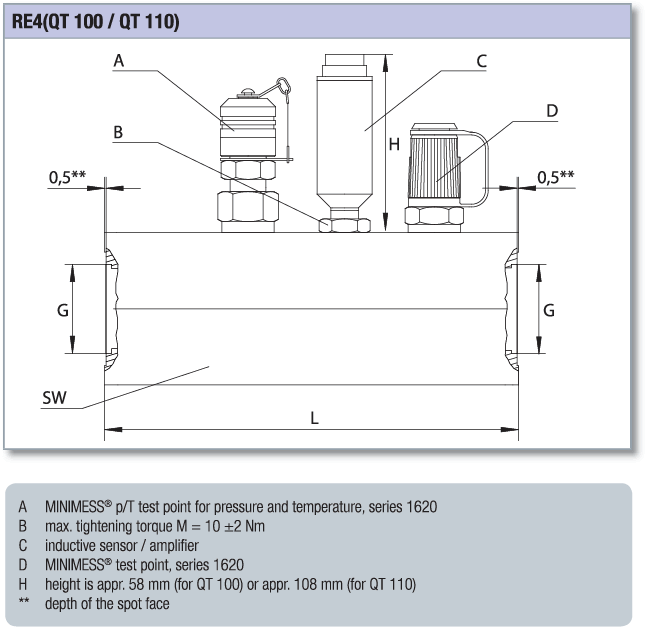

Hydrotechnik turbine flow meters type RE4 Dimensions
| RE4 measuring range | RE4 | L | SW | G |
| l/min | mm | |||
| 1.0 ... 10.0 | RE4-10 | 120 | 41 | ISO 228-G¼ |
| 7.5 ... 75.0 | RE4-75 | 130 | 46 | ISO 228-G3/4 |
| 15 ... 300 | RE4-300 | 150 | 55 | ISO 228-G1 |
| 25 ... 600 | RE4-600 | 174 | 60 | ISO 228-G1¼ |
Hydrotechnik turbine flow meters type RE4 Electrical connections
| Pin assignment | frequency out | 4 ... 20 mA out |
 |
Pin 1 = signal + | Pin 1 = signal + |
| Pin 2 = – Ub / signal – / GND | Pin 2 = signal – / GND | |
| Pin 3 = + Ub | Pin 3 = + Ub | |
| Pin 4 = free | Pin 4 = free | |
| Pin 5 = free | Pin 5 = free |
Hydrotechnik turbine flow meters type RE4 order-NO.
| Measuring range |
Allowed working pressure |
Viscosity range |
Error limit* | Hydrotechnik Order number / weight | ||||
| l/min | bar | MPa | mm²/s (cSt) | frequency | weight (g) | 4 ... 20 mA | weight (g) | |
| 1.0...10.0 (RE4-10) | 420 | 42 | 1 ... 60 | ± 2.5 % | 31V7-01-35.030 |
631 | 31G7-01-35.030 31G7-01-35.00 31G7-01-35.042 31G7-01-35.046 |
681 |
| 7.5...75.0 (RE4-75) | 1 ... 100 | ± 2.5 % | 31V7-70-35.030 31V7-70-35.00 31V7-70-35.042 31V7-70-35.046 |
785 | 31G7-70-35.030 31G7-70-35.00 31G7-70-35.042 31G7-70-35.046 |
869 | ||
| 15...300 (RE4-300) | 1 ... 100 | ± 2.5 % | 31V7-71-35.030 31V7-71-35.00 31V7-71-35.042 31V7-71-35.046 |
1,125 | 31G7-71-35.030 31G7-71-35.00 31G7-71-35.042 31G7-71-35.046 |
1,206 | ||
| 25...600 (RE4-600) | 350 | 35 | 1 ... 100 | ± 2.0 % | 31V7-72-35.030 31V7-72-35.00 31V7-72-35.042 31V7-72-35.046 |
1,378 | 31G7-72-35.030 31G7-72-35.00 31G7-72-35.042 31G7-72-35.046 |
1,498 |
Hydrotechnik RE4 for HFA/HFC-liquids:
| Measuring range |
Allowed working pressure |
Viscosity range |
Error limit* | Hydrotechnik Order number | |||
| l/min | bar | MPa | mm²/s (cSt) | frequency | 0 ... 20 mA | 4 ... 20 mA | |
| 1.0...10.0 (RE4-10) | 420 | 42 | 1 ... 60 | ± 2.5 % | 39V7-01-35.00 |
39F7-01-35.00 39F7-01-35.79 |
39G7-01-35.00 39G7-01-35.79 |
| 7.5...75.0 (RE4-75) | 1 ... 100 | ± 2.5 % | 39V7-70-35.00 39V7-70-35.79 |
39F7-70-35.00 39F7-70-35.79 |
39G7-70-35.00 39G7-70-35.79 |
||
| 15...300 (RE4-300) | 1 ... 100 | ± 2.5 % | 39V7-71-35.00 39V7-71-35.79 |
39V7-71-35.00 39V7-71-35.79 |
39V7-71-35.00 39V7-71-35.79 |
||
| 25...600 (RE4-600) | 350 | 35 | 1 ... 100 | ± 2.0 % | 39V7-72-35.00 39V7-72-35.79 |
39V7-72-35.00 39V7-72-35.79 |
39V7-72-35.00 39V7-72-35.79 |
Hydrotechnik RE4 for brake fluids:
| Measuring range |
Allowed working pressure |
Viscosity range |
Error limit* | Hydrotechnik Order number | |||
| l/min | bar | MPa | mm²/s (cSt) | frequency | 0 ... 20 mA | 4 ... 20 mA | |
| 1.0...10.0 (RE4-10) | 420 | 42 | 1 ... 60 | ± 2.5 % | 32V7-01-35.00 |
32F7-01-35.00 32F7-01-35.79 |
32G7-01-35.00 32G7-01-35.79 |
| 7.5...75.0 (RE4-75) | 1 ... 100 | ± 2.5 % | 32V7-70-35.00 32V7-70-35.79 |
32F7-70-35.00 32F7-70-35.79 |
32G7-70-35.00 32G7-70-35.79 |
||
| 15...300 (RE4-300) | 1 ... 100 | ± 2.5 % | 32V7-71-35.00 32V7-71-35.79 |
32V7-71-35.00 32V7-71-35.79 |
32V7-71-35.00 32V7-71-35.79 |
||
| 25...600 (RE4-600) | 350 | 35 | 1 ... 100 | ± 2.0 % | 32V7-72-35.00 32V7-72-35.79 |
32V7-72-35.00 32V7-72-35.79 |
32V7-72-35.00 32V7-72-35.79 |
Hydrotechnik RE4 for Skydrol:
| Measuring range |
Allowed working pressure |
Viscosity range |
Error limit* | Hydrotechnik Order number | |||
| l/min | bar | MPa | mm²/s (cSt) | frequency | 0 ... 20 mA | 4 ... 20 mA | |
| 1.0...10.0 (RE4-10) | 420 | 42 | 1 ... 60 | ± 2.5 % | 3AV7-01-35.00 |
3AF7-01-35.00 3AF7-01-35.79 |
3AG7-01-35.00 3AG7-01-35.79 |
| 7.5...75.0 (RE4-75) | 1 ... 100 | ± 2.5 % | 3AV7-70-35.00 3AV7-70-35.79 |
3AF7-70-35.00 3AF7-70-35.79 |
3AG7-70-35.00 3AG7-70-35.79 |
||
| 15...300 (RE4-300) | 1 ... 100 | ± 2.5 % | 3AV7-71-35.00 3AV7-71-35.79 |
3AV7-71-35.00 3AV7-71-35.79 |
3AV7-71-35.00 3AV7-71-35.79 |
||
| 25...600 (RE4-600) | 350 | 35 | 1 ... 100 | ± 2.0 % | 3AV7-72-35.00 3AV7-72-35.79 |
3AV7-72-35.00 3AV7-72-35.79 |
3AV7-72-35.00 3AV7-72-35.79 |
Hydrotechnik RE4 for Inductive probe IG 03 to 240 °C (464 °F)
| Measuring range |
Allowed working pressure |
Viscosity range |
Error limit* | Hydrotechnik Order number | |
| l/min | bar | MPa | mm²/s (cSt) | max 240°C,frequency | |
| 1.0...10.0 (RE4-10) | 420 | 42 | 1 ... 60 | ± 2.5 % | 31H7-01-35.00 31H7-01-35.79 |
| 7.5...75.0 (RE4-75) | 1 ... 100 | ± 2.5 % | 31H7-70-35.00 31H7-70-35.79 |
||
| 15...300 (RE4-300) | 1 ... 100 | ± 2.5 % | 31H7-71-35.00 31H7-71-35.79 |
||
| 25...600 (RE4-600) | 350 | 35 | 1 ... 100 | ± 2.0 % | 31H7-72-35.00 3AV7-72-35.79 |
Hydrotechnik RE6 for clear water
| Measuring range |
Allowed working pressure |
Viscosity range |
Error limit* | Hydrotechnik Order number | |||
| l/min | bar | MPa | mm²/s (cSt) | frequency | 4 ... 20 mA | 0 ... 20 mA | |
| 1.0...10.0 (RE6-10) | 420 | 42 | 1 ... 60 | ± 2.5 % | 33V7-01-35.001 |
33G7-01-35.001 | 33F7-01-35.001 |
| 7.5...75.0 (RE6-75) | 1 ... 100 | ± 2.5 % | 39V7-77-35.00 39V7-77-35.79 33V7-77-35.001 |
39G7-77-35.00 39G7-77-35.79 33G7-77-35.001 |
39F7-77-35.00 39F7-77-35.79 33F7-77-35.001 |
||
| 15...300 (RE6-300) | 1 ... 100 | ± 2.5 % | 39V7-78-35.00 39V7-78-35.79 33V7-78-35.001 |
39G7-78-35.00 39G7-78-35.79 33G7-78-35.001 |
39F7-78-35.00 39F7-78-35.79 33F7-78-35.001 |
||
| 25...600 (RE6-600) | 350 | 35 | 1 ... 100 | ± 2.0 % | 39V7-79-35.00 39V7-79-35.79 33V7-79-35.001 |
39G7-79-35.00 39G7-79-35.79 33G7-79-35.001 |
39F7-79-35.00 39F7-79-35.79 33F7-79-35.001 |
