Hydrotechnik MultiBox

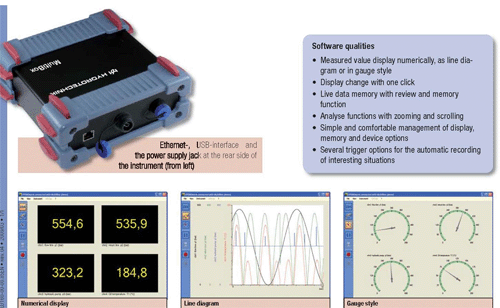

These sophisticated measuring instruments are your reliable companions for measuring tasks outside the offi ce. Protected against rough treatment,but highly sensitive for several measurands.
Connect sensors and the USB interface – ready. The intuitive software offers professional functions for the immediate monitoring and recordingof all channels. Select the version that fi ts best for you: USB measuring box,data logger or Ethernet measuring box.

Four analog inputs
High-resolution A/D-converter
Frequency input
Two calculated channels
Power supply via USB or external power pack
Sensor power supply
Internal memory (only MultiBox 3061/3065)
Good protection against environmentalinfluences

Hydrotechnik MultiBoxTechnical data and Order number

Technical data MultiBox 3060 MultiBox 3061 MultiBox 3065
Inputs 3x analog + 1x analog/frequency
Analog input signal 0 ... 20 mA / 4 ... 20 mA
Resolution A/D-converter 12 bit
Input frequency 1 Hz ... 10 kHz
Measuring rate 1 ms
ISDS channels 4x
Internal memory 128 MB
Interfaces USB USB, Ethernet
Sensor power supply 12 VDC
MultiBox power supply 5 VDC, via USB
... alternatively 9 ... 30 VDC, from external power pack
Current consumption < 500 mA < 600 mA
Protection type IP 54 IP 40
Dimensions (L x W x H) 114.7 x 100 x 38.4 mm
Order number 3160-00-00.85 3160-00-00.86 3160-00-00.87
